Name: High-Precision CNC Laser Cutter for Stainless Steel Sheet Metal
Brand: Foshan Star Power Technology Co.Ltd
SKU: YZ28G0200T
Price: 100000.00 USD
Availability: InStock

विशेषताएं गेलरी उत्पाद विवरण एक बोली का अनुरोध

विशेषताएं

निर्दिष्टीकरण

लेजर कटिंग प्रक्रियाओं का डेटाबेस: लेजर कटिंग प्रक्रियाओं का डेटाबेस

लेजर जनरल तंत्र: अधिकतम 3000W

मशीन प्रकार: रोल टाइप फाइबर लेजर कटिंग मशीन

प्रणाली: इमदादी

वोल्टेज: 380V/220V वैकल्पिक

आयाम (l*w*h): 2200*2400*4200 मिमी

अधिकतम स्थिति गति: 100 मीटर/मिनट

मोटर शक्ति (kW): 30kw

प्रमुखता देना:

CNC laser cutter for stainless steel

precision sheet metal cutter

kitchen sink laser cutting machine

मूलभूत जानकारी

उत्पत्ति के प्लेस: ग्वांगडोंग, चीन

ब्रांड नाम: Star Power

प्रमाणन: CU,ISO

मॉडल संख्या: YZ28G0200T

भुगतान & नौवहन नियमों

पैकेजिंग विवरण: फिल्म के साथ धातु का फ्रेम

प्रसव के समय: 1 महीना

भुगतान शर्तें: एल/सी, डी/पी, टी/टी

आपूर्ति की क्षमता: प्रति माह 100 सेट/सेट

गेलरी

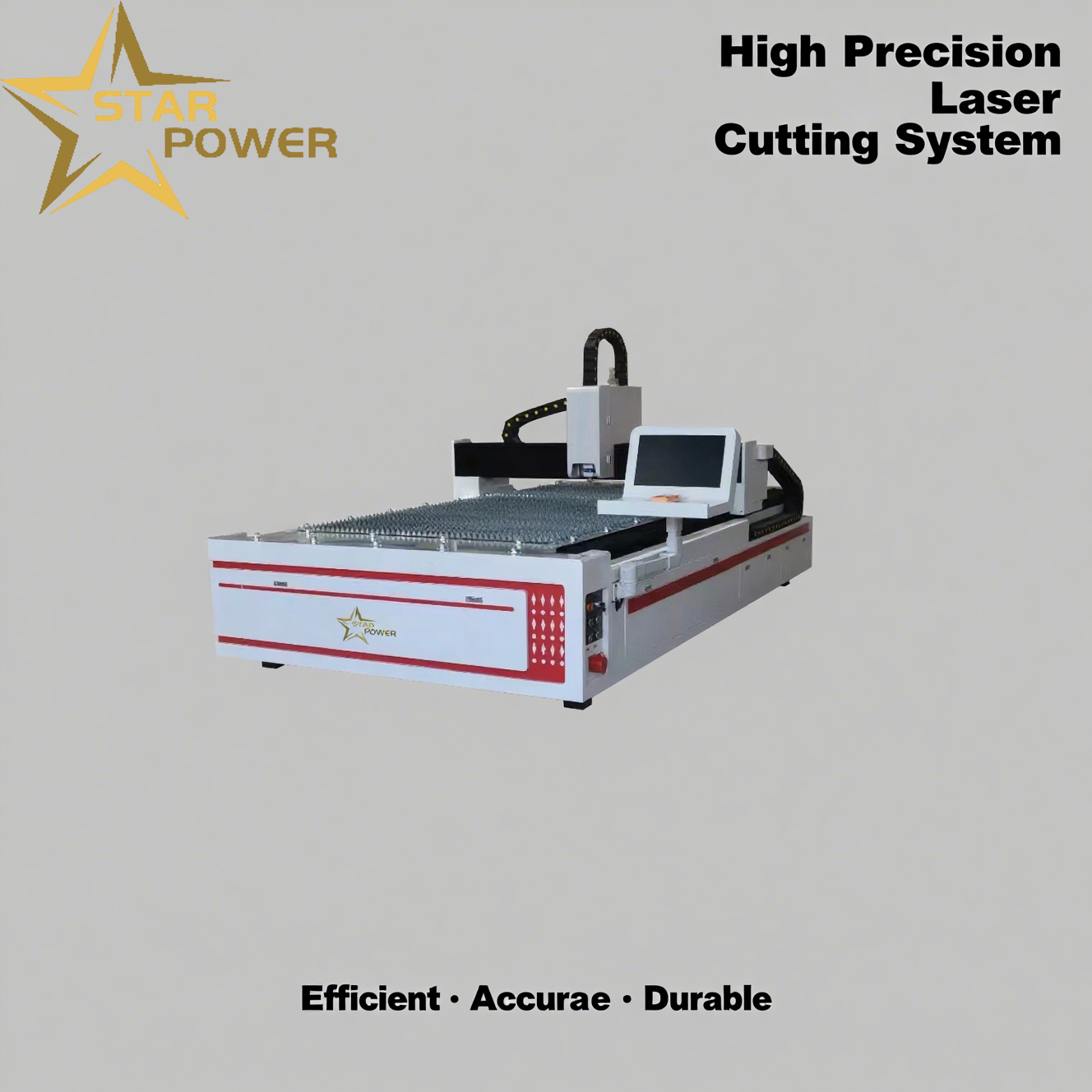

High-Precision CNC Laser Cutter for Stainless Steel Sheet Metal

उत्पाद विवरण

High-Precision CNC Laser Cutter for Stainless Steel Sheet Metal

Key Specifications

Laser Generator System	MAX 3000W
Machine Type	Roll type fiber laser cutting machine
System	Servo
Voltage	380V/220V Optional
Dimensions (L×W×H)	2200×2400×4200mm
Maximum Positioning Speed	100m/min
Motor Power	30kw

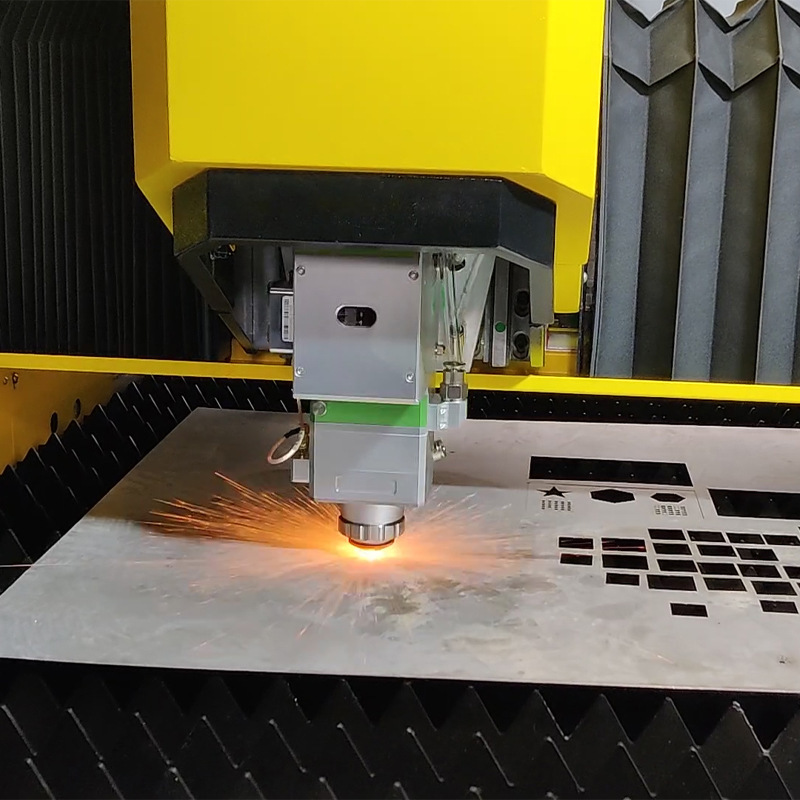

Precision Cutting Performance

This high-precision CNC laser cutter delivers micron-level precision for stainless steel processing. Equipped with a high-stability fiber laser source and imported CNC system, it achieves ±0.01mm positioning accuracy and ±0.005mm repeat positioning accuracy.

Capable of cutting stainless steel sheets from 0.1-18mm thickness, it handles complex micro-holes, fine seams, and special-shaped structures with perfect accuracy, meeting stringent requirements for medical devices, electronic components, and precision hardware.

Advanced Features

High-definition visual positioning system for automatic sheet position calibration
High-precision rack-and-pinion guide rails with dual-drive servo system
Direct file reading from CAD/AI software for one-click cutting path generation
Low-loss laser optical path design maintains precision over long-term use

Technical Specifications

CNC System (Including Control Software)	FSUT 2000E
Automatic Following System	FSCUT
Database of Laser Cutting Processes	Star Power Laser
Manual Laser Cutting Head	Raytools
High-Flex Cable Energy Chains	China
Remote Control Handle	CC laser

Industry Applications

Furniture Manufacturing: Produces components of various shapes for unique designs
Mechanical Manufacturing: Precisely cuts complex shapes to improve component accuracy
Architectural Decoration: Enables fine processing of micro-components and metal casings
Aerospace: Meets extreme quality and accuracy requirements for critical components
Electronics Industry: Cuts circuit boards and achieves micro-component processing

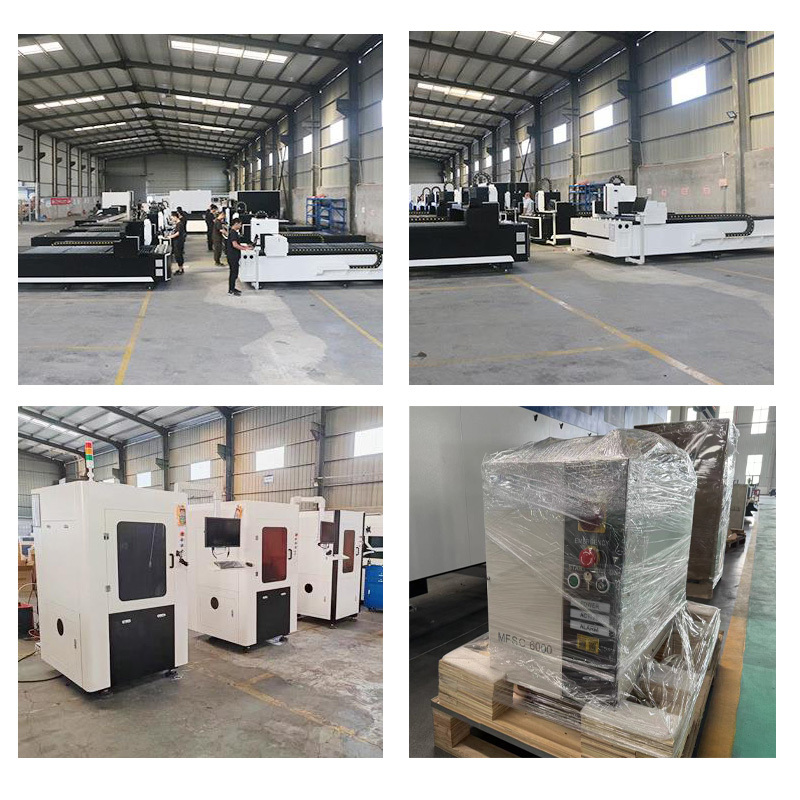

Secure Packaging

Our high-quality film packaging provides comprehensive protection against scratches, collisions, and dust intrusion during transportation and storage. The moisture-resistant film closely fits equipment contours, protecting all precision components including the fuselage, cutting head, and control panel.
